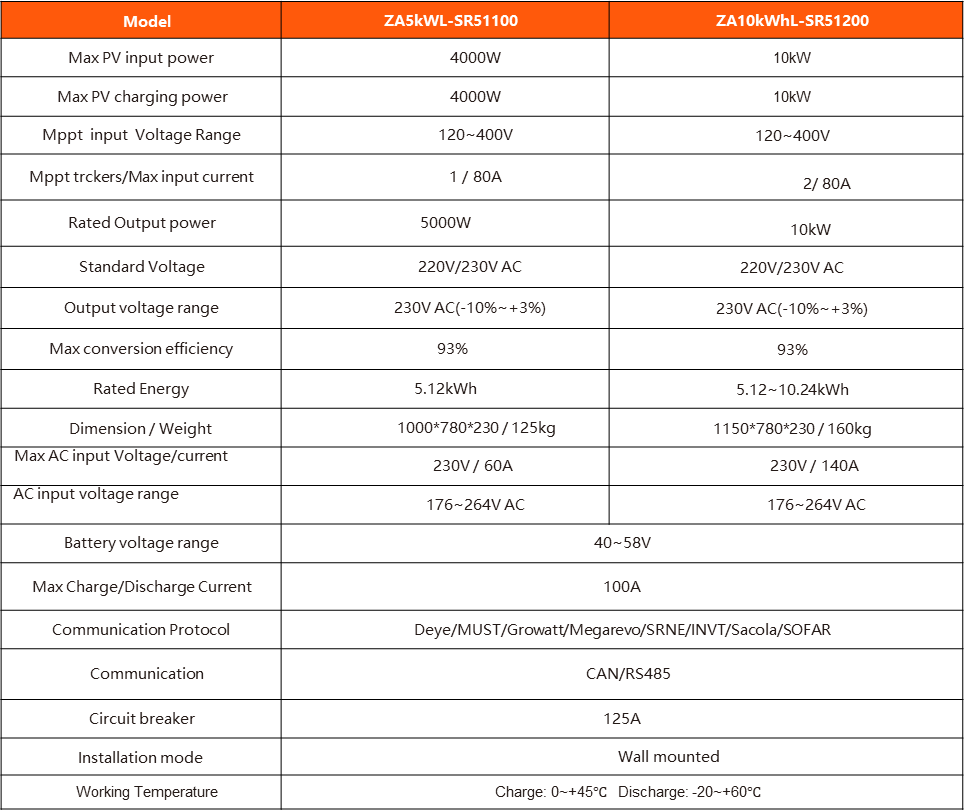

| Model | ZA5kWL-SR51100 | ZA10kWhL-SR51200 |
| Max PV input power | 4000W | 10kW |
| Max PV charging power | 4000W | 10kW |
| Mppt input Voltage Range | 120~400V | 120~400V |
| Mppt trckers/Max input current | 1 / 80A | 2/ 80A |
| Rated Output power | 5000W | 10kW |
| Standard Voltage | 220V/230V AC | 220V/230V AC |
| Output voltage range | 230V AC(-10%~+3%) | 230V AC(-10%~+3%) |
| Max conversion efficiency | 93% | 93% |
| Rated Energy | 5.12kWh | 5.12~10.24kWh |
| Dimension / Weight | 1000*780*230 / 125kg | 1150*780*230 / 160kg |
| Max AC input Voltage/current | 230V / 60A | 230V / 140A |
| AC input voltage range | 176~264V AC | 176~264V AC |
| Battery voltage range | 40~58V | |
| Max Charge/Discharge Current | 100A | |
| Communication Protocol | Deye/MUST/Growatt/Megarevo/SRNE/INVT/Sacola/SOFAR | |
| Communication | CAN/RS485 | |
| Circuit breaker | 125A | |
| Installation mode | Wall mounted | |
| Working Temperature | Charge: 0~+45℃ Discharge: -20~+60℃ | |
