portable energy storage-ZP 1000最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>

ZP1000-1000W
1000VA OUTPUT
*Intelligent Fast Charging 4hr
*Built-in MPPT Controller & BMS
*LiFePo4 High Capacity Battery
*Support UPS Function & Big output power
*Real-time Power Level Color Display

Overseas-warehouse-shipment
New Technology
Rapid delivery

Perfect quality system and product certification
ZP1000-1000W
1000VA OUTPUT
*Intelligent Fast Charging 4hr
*Built-in MPPT Controller & BMS
*LiFePo4 High Capacity Battery
*Support UPS Function & Big output power
*Real-time Power Level Color Display
Solar Power Station, Emergency Power
PORTABLE POWER STATION
Sockets can be customized as follows：
*ISO9001 factory quality management system
*ISO14001Environmental Management System
*CE&FCC*ROSH&UN38.3&MSDS

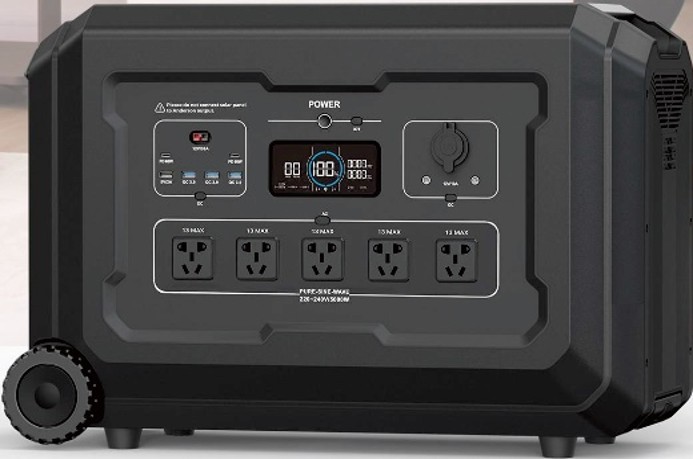

ZP1000 is a portable energy storage power supply with built-in lithium iron phosphate battery,
featuring fast charging, high power output and long cycle life, built-in mppt solar charging function
and compatible with a variety of charging methods, which is widely used in outdoor power and
emergency power scenarios. Especially for the use of frequent power outages in areas and countries.

portable energy storage-ZP 1000最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/portable-energy-storage/portable-energy-storage-zp-1000/feed/ 0 Portable energy storage- S1/S5 https://www.neovisionenergy.com/case/portable-energy-storage-s1-s5/ https://www.neovisionenergy.com/case/portable-energy-storage-s1-s5/#respond Sun, 12 Oct 2025 03:14:34 +0000 https://www.neovisionenergy.com/?p=1285 Model S1 S5 AC Output Standard Voltage 100~120V / 220~230V 100~120V 220~230V Standard Power /Boost mode 2000W 4000W 5000W Peak 4000W 7000W DC Output DC 12V 12V / 10A (Car Socket output /5521) 12V / 10A (Car Socket output /5521) 12V/30A (Anderson) USB-A 5V / 3A; 9V / 3A; 12V /1.5A (MAX 18W) 5V /2A;...

Portable energy storage- S1/S5最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>
ModelS1S5
AC OutputStandard Voltage100~120V / 220~230V100~120V220~230V
Standard Power /Boost mode2000W4000W5000W
Peak4000W7000W
DC OutputDC 12V12V / 10A (Car Socket output /5521)12V / 10A (Car Socket output /5521) 12V/30A (Anderson)
USB-A5V / 3A; 9V / 3A; 12V /1.5A (MAX 18W)5V /2A; 5V /3A; 9V /3A; 12V /1.5A (MAX 18W)
USB-C5V /3A; 9V /3A; 12V /3A; 15V /3A ;20V/5A (PD MAX 100W)5V /3A; 9V /3A; 12V /3A; 20V/3A (PD MAX 60W)
AC inputStandard Voltage100~120V / 220~230V100~120V220~230V
Max Power1400W1800W2500W
PV InputMax power800W2100W
MPPT Range12~75V12~140V
Max Current15A15A
Rated Energy1024Wh(20Ah/51.2V) /Expand to 31744Wh5040Wh(105Ah/48V) /Expand to 30240Wh
Dimension / Weight384*232*295mm / 12.6kg641.5*304.5*437.5mm / 50kg
Cell TypeLiFePO4
Working TemperatureCharge: 0~+45℃   Discharge: -20~+60℃
CertificationCE / RoHS / UKCA / SAA / UL 2743 / FCC / PSE
 cycles3500+ / Capacity retention 80%
UPS switch time≤20ms
APPSupport

Portable energy storage- S1/S5最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/portable-energy-storage-s1-s5/feed/ 0 UPS Power System https://www.neovisionenergy.com/case/ups-power-system/ https://www.neovisionenergy.com/case/ups-power-system/#respond Sun, 12 Oct 2025 03:07:41 +0000 https://www.neovisionenergy.com/?p=1282 Model UPS19250 UPS192100 UPS38450 UPS384100 Rated Voltage 192V 192V 384V 384V Rated Capacity 50Ah 100Ah 50Ah 100Ah Min Capacity 49Ah 98Ah 49Ah 98Ah Size(L*W*H)mm 600*600*1000      600*800*1400 600*800*1400 600*800*2000 Weight 110KG 180KG 200KG 350KG End voltage of charge 219V 219V 438V 438V End voltage of discharge 162V 162V 324V 324V Charge Mode CC/CP/VP Charge Current...

UPS Power System最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>
ModelUPS19250UPS192100UPS38450UPS384100
Rated Voltage192V192V384V384V
Rated Capacity50Ah100Ah50Ah100Ah
Min Capacity49Ah98Ah49Ah98Ah
Size(L*W*H)mm600*600*1000     600*800*1400600*800*1400600*800*2000
Weight110KG180KG200KG350KG
End voltage of charge219V219V438V438V
End voltage of discharge162V162V324V324V
Charge ModeCC/CP/VP
Charge CurrentStandard：0.2C  Max：1C
Discharge ModeCC/CP/VP
Discharge CurrentStandard：0.2C  Max：1C
DisplayLCD（Optional）
InterfaceRS485/RS232/CAN
Working TemperatureCharge: 0~+45℃   Discharge: -20~+60℃
  Storage TemperatureShort time:-10~+45 ℃  (<3 months, SOC: 20%~60%) Long time:-10 ~+40 ℃ (<1 year, SOC: 30%~60%） Recharge every 3 months
Storage Humidity5%~95%
Shipment StatusVoltage: 45~50V  SOC:30%~50%

UPS Power System最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/ups-power-system/feed/ 0 Home Energy  Storage Battery   — All in one https://www.neovisionenergy.com/case/home-energy-storage-battery/ https://www.neovisionenergy.com/case/home-energy-storage-battery/#respond Sun, 12 Oct 2025 03:05:35 +0000 https://www.neovisionenergy.com/?p=1279 ZW5kWL series energy storage all-in-one machine is an energy storage system that integrates municipal/solar power charging, municipal power bypass and inverter output, high-performance lithium iron phosphate battery and energy control. Unique lithium battery balance management technology and modular lithium battery, matched with high-performance lithium iron phosphate battery application system, provide users with high reliability, high...

Home Energy  Storage Battery   — All in one最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>

ZW5kWL series energy storage all-in-one machine is an energy storage system that integrates municipal/solar power charging, municipal power bypass and inverter output, high-performance lithium iron phosphate battery and energy control. Unique lithium battery balance management technology and modular lithium battery, matched with high-performance lithium iron phosphate battery application system, provide users with high reliability, high stability and green power.

Home Energy  Storage Battery   — All in one最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/home-energy-storage-battery/feed/ 0 Home Energy  Storage Battery— Stacking https://www.neovisionenergy.com/case/home-energy-storage-battery-stacking/ https://www.neovisionenergy.com/case/home-energy-storage-battery-stacking/#respond Sun, 12 Oct 2025 03:03:20 +0000 https://www.neovisionenergy.com/?p=1276                                 — Stacking Model SS51200 SS51300 SS51400 SS51500 SS51600 Rated Voltage 51.2V 51.2V 51.2V 51.2V 51.2V Rated Capacity 200Ah 300Ah 400Ah 500Ah 600Ah Size(L*W*H)mm Inverter:602*103*140mm / Battery:602*403*200mm / Chassis:602*403*130mm Weight Inverter:25kg / Battery:50kg / Chassis:12kg   Charge Mode CC/CP/VP   Charge Current Standard：0.5C  Max：1C End voltage of charge 58.4V Discharge Mode CC/CP/VP Discharge Current Standard：0.5C...

Home Energy  Storage Battery— Stacking最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>                                 — Stacking

ModelSS51200SS51300SS51400SS51500SS51600
Rated Voltage51.2V51.2V51.2V51.2V51.2V
Rated Capacity200Ah300Ah400Ah500Ah600Ah
Size(L*W*H)mmInverter:602*103*140mm / Battery:602*403*200mm / Chassis:602*403*130mm
WeightInverter:25kg / Battery:50kg / Chassis:12kg
  Charge ModeCC/CP/VP
  Charge CurrentStandard：0.5C  Max：1C
End voltage of charge58.4V
Discharge ModeCC/CP/VP
Discharge CurrentStandard：0.5C  Max：1C
End voltage of discharge43.2V
Inverter5kW/8kW
InterfaceRS485/RS232/CAN
InstallationStacking
Working TemperatureCharge: 0~+45℃   Discharge: -20~+60℃
  Storage TemperatureShort time:-10~+45 ℃  (<3 months, SOC: 20%~60%) Long time:-10 ~+40 ℃ (<1 year, SOC: 30%~60%） Recharge every 3 months
Storage Humidity5%~95%
Shipment StatusVoltage: 45~50V  SOC:30%~50%

Home Energy  Storage Battery— Stacking最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/home-energy-storage-battery-stacking/feed/ 0 Home Energy  Storage Battery -wall https://www.neovisionenergy.com/case/home-energy-storage-battery-wall/ https://www.neovisionenergy.com/case/home-energy-storage-battery-wall/#respond Sun, 12 Oct 2025 02:59:17 +0000 https://www.neovisionenergy.com/?p=1273   Model SW51100-3U SW51100-4U SW51150 SW51200 SW51280 Rated Voltage 51.2V 51.2V 51.2V 51.2V 51.2V Rated Capacity 100Ah 100Ah 150Ah 200Ah 280Ah Size(L*W*H)mm 535*430*133 535*430*177 535*450*177 590*450*221 650*450*221   Weight 47Kg 49Kg 66Kg 81Kg 106Kg   Charge Mode CC/CP/VP   Charge Current Standard：0.5C  Max：1C End voltage of charge 58.4V Discharge Mode CC/CP/VP Discharge Current Standard：0.5C  Max：1C...

Home Energy  Storage Battery -wall最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>

ModelSW51100-3USW51100-4USW51150SW51200SW51280
Rated Voltage51.2V51.2V51.2V51.2V51.2V
Rated Capacity100Ah100Ah150Ah200Ah280Ah
Size(L*W*H)mm535*430*133535*430*177535*450*177590*450*221650*450*221
  Weight47Kg49Kg66Kg81Kg106Kg
  Charge ModeCC/CP/VP
  Charge CurrentStandard：0.5C  Max：1C
End voltage of charge58.4V
Discharge ModeCC/CP/VP
Discharge CurrentStandard：0.5C  Max：1C
End voltage of discharge43.2V
DisplayLCD（Optional）
InterfaceRS485/RS232/CAN
InstallationWall mounted
Working TemperatureCharge: 0~+45℃   Discharge: -20~+60℃
  Storage TemperatureShort time:-10~+45 ℃  (<3 months, SOC: 20%~60%) Long time:-10 ~+40 ℃ (<1 year, SOC: 30%~60%） Recharge every 3 months
Storage Humidity5%~95%
Shipment StatusVoltage: 45~50V  SOC:30%~50%

Home Energy  Storage Battery -wall最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/home-energy-storage-battery-wall/feed/ 0 Home Energy Storage Battery     — Rack https://www.neovisionenergy.com/case/home-energy/home-energy-storage-battery-rack/ https://www.neovisionenergy.com/case/home-energy/home-energy-storage-battery-rack/#respond Sun, 12 Oct 2025 02:55:34 +0000 https://www.neovisionenergy.com/?p=1270 Model SR51100-3U SR51100-4U SR51100-5U SR51150 SR51200 SR51280 Rated Voltage 51.2V 51.2V 51.2V 51.2V 51.2V 51.2V Rated Capacity 100Ah 100Ah 100Ah 150Ah 200Ah 280Ah Size(L*W*H)mm 440*442*133 430*442*177 430*442*222 480*442*177 500*442*221 650*442*221 Weight 47Kg 49Kg 51Kg 66Kg 81Kg 106Kg Charge Mode CC/CP/VP Charge Current Standard：0.5C  Max：1C End voltage of charge 58.4V Discharge Mode CC/CP/VP Discharge Current Standard：0.5C...

Home Energy Storage Battery     — Rack最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>
ModelSR51100-3USR51100-4USR51100-5USR51150SR51200SR51280
Rated Voltage51.2V51.2V51.2V51.2V51.2V51.2V
Rated Capacity100Ah100Ah100Ah150Ah200Ah280Ah
Size(L*W*H)mm440*442*133430*442*177430*442*222480*442*177500*442*221650*442*221
Weight47Kg49Kg51Kg66Kg81Kg106Kg
Charge ModeCC/CP/VP
Charge CurrentStandard：0.5C  Max：1C
End voltage of charge58.4V
Discharge ModeCC/CP/VP
Discharge CurrentStandard：0.5C  Max：1C
End voltage of discharge43.2V
DisplayLCD（Optional）
InterfaceRS485/RS232/CAN
InstallationWall mounted/ Floor mounted/ Stack/ Rack mounted
Working TemperatureCharge: 0~+45℃   Discharge: -20~+60℃
Storage TemperatureShort time:-10~+45 ℃  (<3 months, SOC: 20%~60%) Long time:-10 ~+40 ℃ (<1 year, SOC: 30%~60%） Recharge every 3 months
Storage Humidity5%~95%
Shipment StatusVoltage: 45~50V  SOC:30%~50%

Home Energy Storage Battery     — Rack最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/home-energy/home-energy-storage-battery-rack/feed/ 0 Base Station Battery Family https://www.neovisionenergy.com/case/base-station/base-station-battery-family/ https://www.neovisionenergy.com/case/base-station/base-station-battery-family/#respond Sun, 12 Oct 2025 02:26:00 +0000 https://www.neovisionenergy.com/?p=1266 Model ST4850 ST48100-3U ST48100-4U ST48100-5U ST48150 ST48200 Rated Voltage 48V 48V 48V 48V 48V 48V Rated Capacity 50Ah 100Ah 100Ah 100Ah 150Ah 200Ah Min Capacity 48Ah 98Ah 98Ah 100Ah 147Ah 196Ah Size(L*W*H) mm 400*442*133 440*442*133 430*442*177 430*442*222 480*442*177 500*442*221 Weight 24Kg 46Kg 48Kg 50Kg 65Kg 80Kg Charge Mode CC/CP/VP Charge Current Standard：0.5C  Max：1C End voltage...

Base Station Battery Family最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>
ModelST4850ST48100-3UST48100-4UST48100-5UST48150ST48200
Rated Voltage48V48V48V48V48V48V
Rated Capacity50Ah100Ah100Ah100Ah150Ah200Ah
Min Capacity48Ah98Ah98Ah100Ah147Ah196Ah
Size(L*W*H) mm400*442*133440*442*133430*442*177430*442*222480*442*177500*442*221
Weight24Kg46Kg48Kg50Kg65Kg80Kg
Charge ModeCC/CP/VP
Charge CurrentStandard：0.5C  Max：1C
End voltage of charge54.75V
Discharge ModeCC/CP/VP
Discharge CurrentStandard：0.5C  Max：1C
End voltage of discharge40.5V
DisplayLCD（Optional）
InterfaceRS485/RS232/CAN
Working TemperatureCharge: 0~+45℃   Discharge: -20~+60℃
Storage TemperatureShort time:-10~+45 ℃  (<3 months, SOC: 20%~60%) Long time:-10 ~+40 ℃ (<1 year, SOC: 30%~60%） Recharge every 3 months
Storage Humidity5%~95%
Shipment StatusVoltage: 45~50V  SOC:30%~50%

Base Station Battery Family最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/base-station/base-station-battery-family/feed/ 0 Lithium Lead-Acid Battery Family https://www.neovisionenergy.com/case/lithium-lead-acid-battery-family/ https://www.neovisionenergy.com/case/lithium-lead-acid-battery-family/#respond Sun, 12 Oct 2025 02:22:10 +0000 https://www.neovisionenergy.com/?p=1263 Model LQ1206 LQ1210 LQ1220 LQ1250 LQ12100 LQ12150 LQ12200 Rated Voltage 12.8V 12.8V 12.8V 12.8V 12.8V 12.8V 12.8V Rated Capacity 6Ah 10Ah 20Ah 50Ah 100Ah 150Ah 200Ah Load power ≤100W ≤100W ≤300W ≤500W ≤1000W ≤1000W ≤2000W Size(L*W*T)mm 90*70*100 151*94*65 180*165*75 229*138*208 330*216*175 483*170*240 522*240*218 Weight 0.7Kg 1.1Kg 2.3Kg 6Kg 11.5Kg 16Kg 22.5Kg Con max chg current...

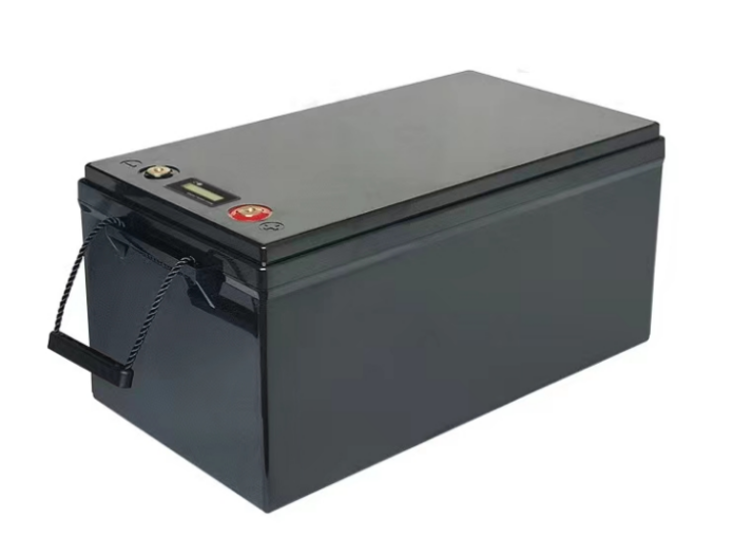

Lithium Lead-Acid Battery Family最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]>
ModelLQ1206LQ1210LQ1220LQ1250LQ12100LQ12150LQ12200
Rated Voltage12.8V12.8V12.8V12.8V12.8V12.8V12.8V
Rated Capacity6Ah10Ah20Ah50Ah100Ah150Ah200Ah
Load power≤100W≤100W≤300W≤500W≤1000W≤1000W≤2000W
Size(L*W*T)mm90*70*100151*94*65180*165*75229*138*208330*216*175483*170*240522*240*218
Weight0.7Kg1.1Kg2.3Kg6Kg11.5Kg16Kg22.5Kg
Con max chg current6A10A20A50A100A100A100A
Con max dischg current10A10A30A50A100A100A100A
Peak discharge current20A，10S20A，10S60A，10S80A，10S200A，10S200A，10S200A，10S
Working TemperatureCharge: 0~+45℃   Discharge: -20~+60℃
Storage TemperatureShort time:-10~+45 ℃  (<3 months, SOC: 20%~60%) Long time:-10 ~+40 ℃ (<1 year, SOC: 30%~60%）

Lithium Lead-Acid Battery Family最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/lithium-lead-acid-battery-family/feed/ 0 Available in a variety of colors https://www.neovisionenergy.com/case/available-in-a-variety-of-colors/ https://www.neovisionenergy.com/case/available-in-a-variety-of-colors/#respond Mon, 15 Sep 2025 09:28:32 +0000 https://www.neovisionenergy.com/?p=825 Available in a variety of colors

Available in a variety of colors最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> Available in a variety of colors

Available in a variety of colors最先出现在Shenzhen Neovision Energy Technology Service Co.,Ltd。

]]> https://www.neovisionenergy.com/case/available-in-a-variety-of-colors/feed/ 0
